All-terrain Adaptation

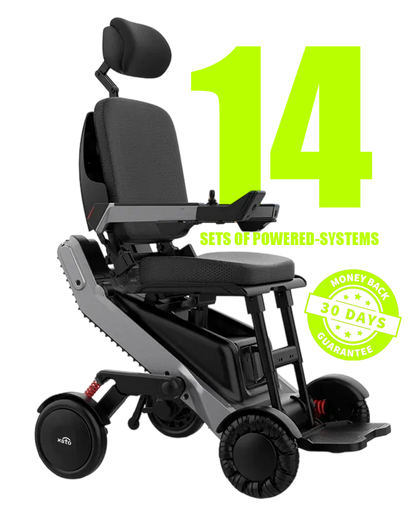

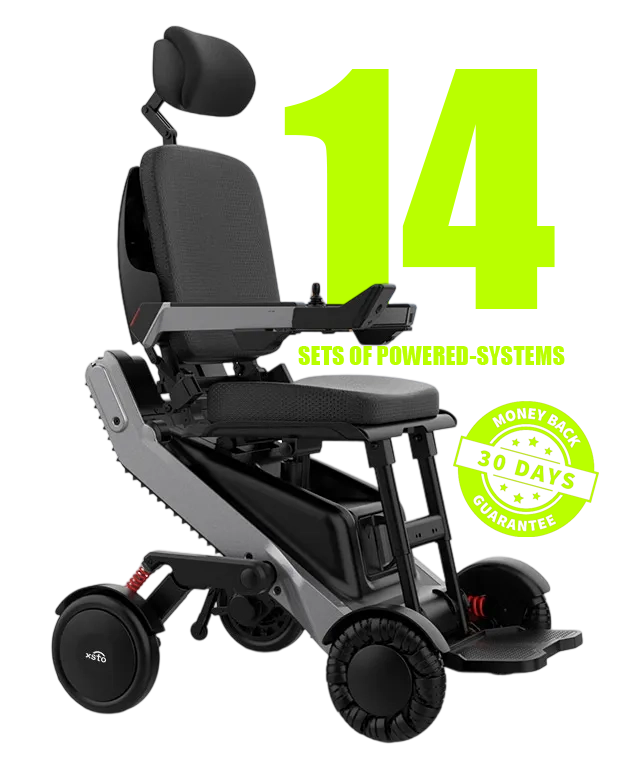

Wheeled quadruped robotic chassis + Dual-track climbing system flexibly to various complex terrains. 14 sets of powered-systems provide exceptional stability and obstacle-crossing capabilities, making it effortless to navigate stair steep slopes, and rugged surfaces as if it traversing flat ground.
Multiple Operation Modes
 |
 |
 |
Caterpillar Mode |

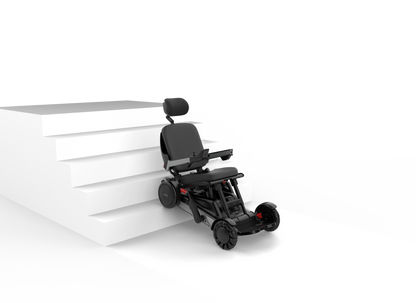

Climbing & Obstacle-surmounting Mode: |
Caterpillar Mode |
|
The wheeled quadruped robot chassis is equipped with an independent power system and suspension shock absorption system for the four wheels, which has strong off-road performance and provides comfortable experience.
|

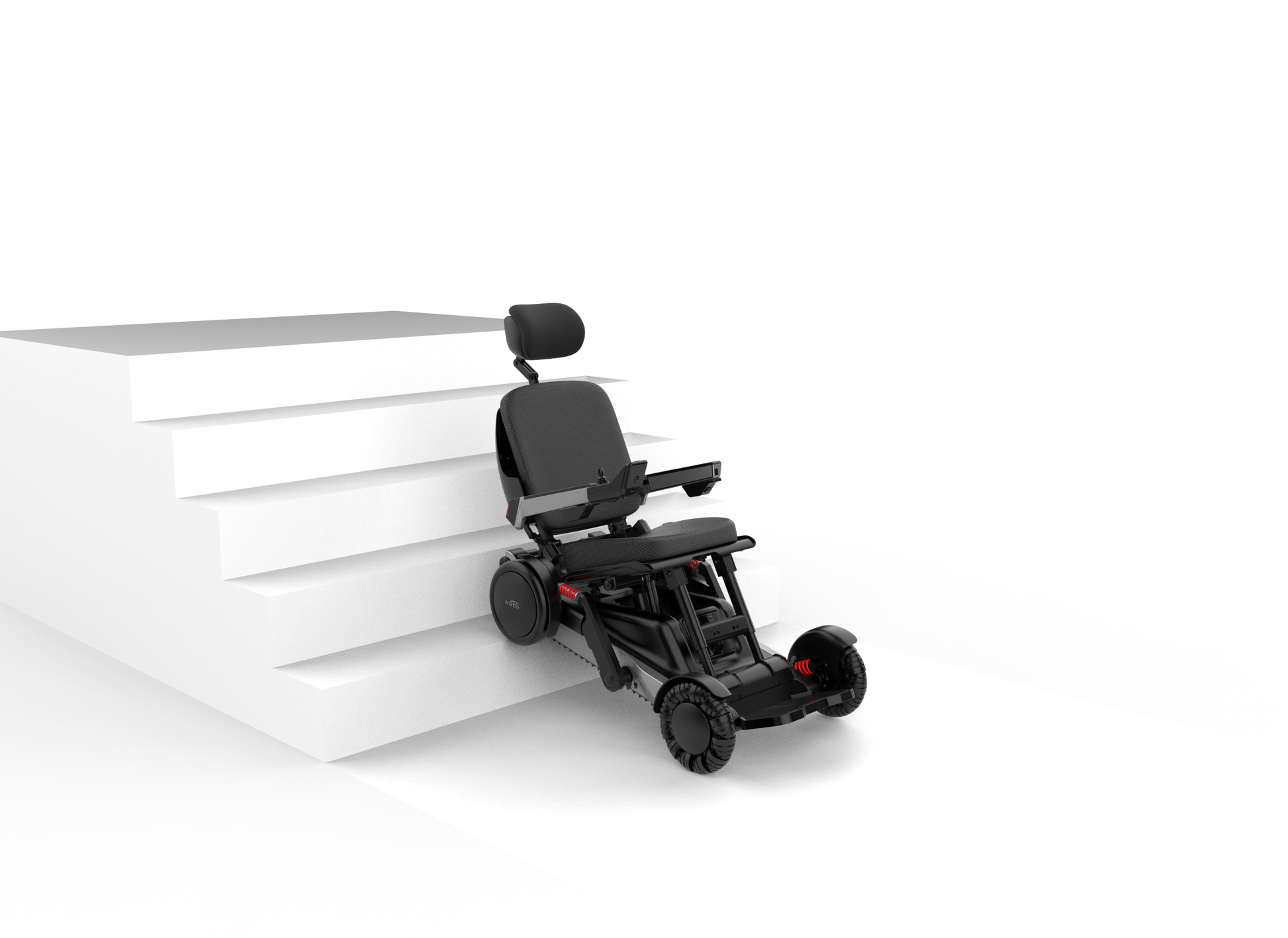

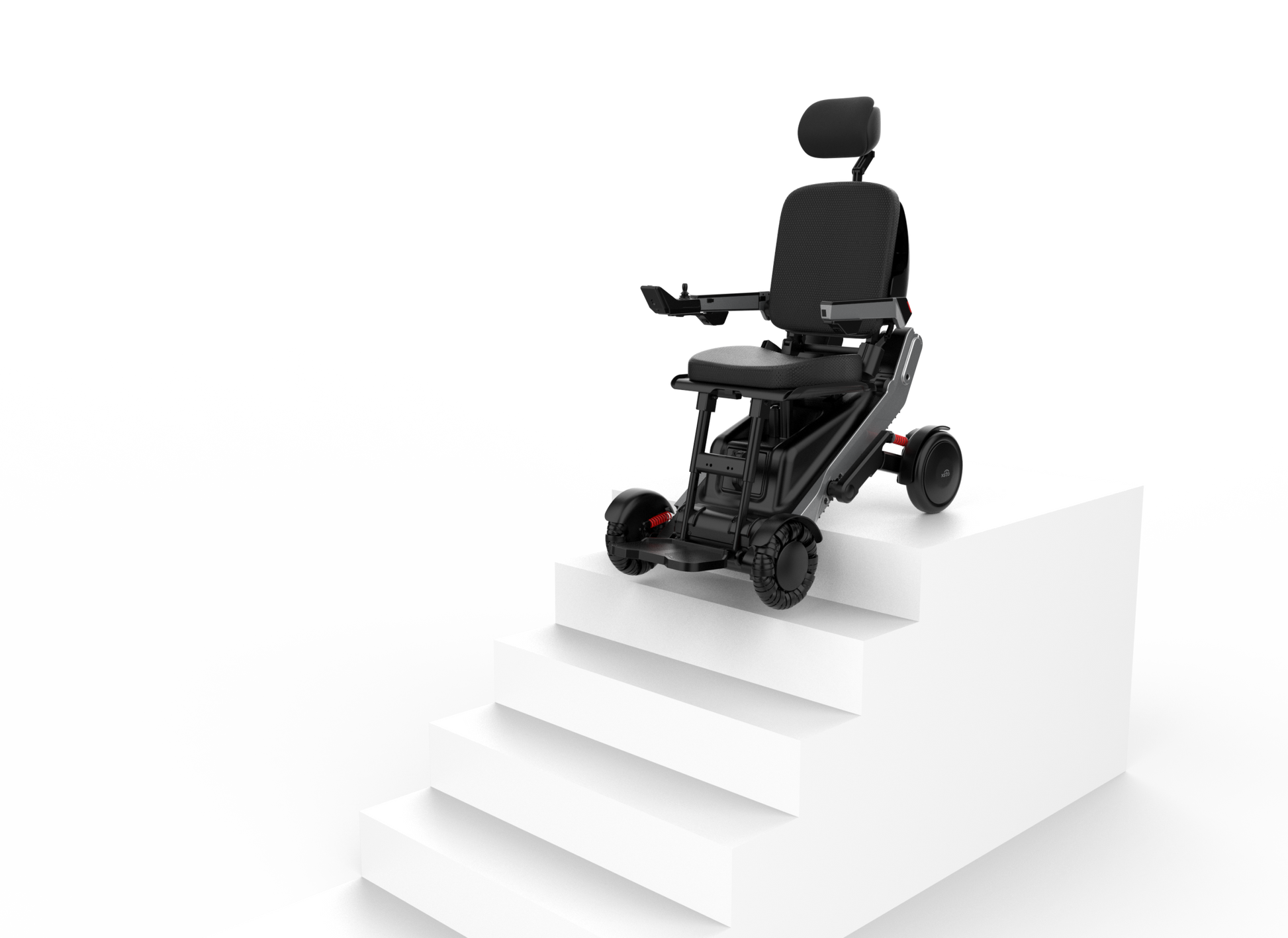

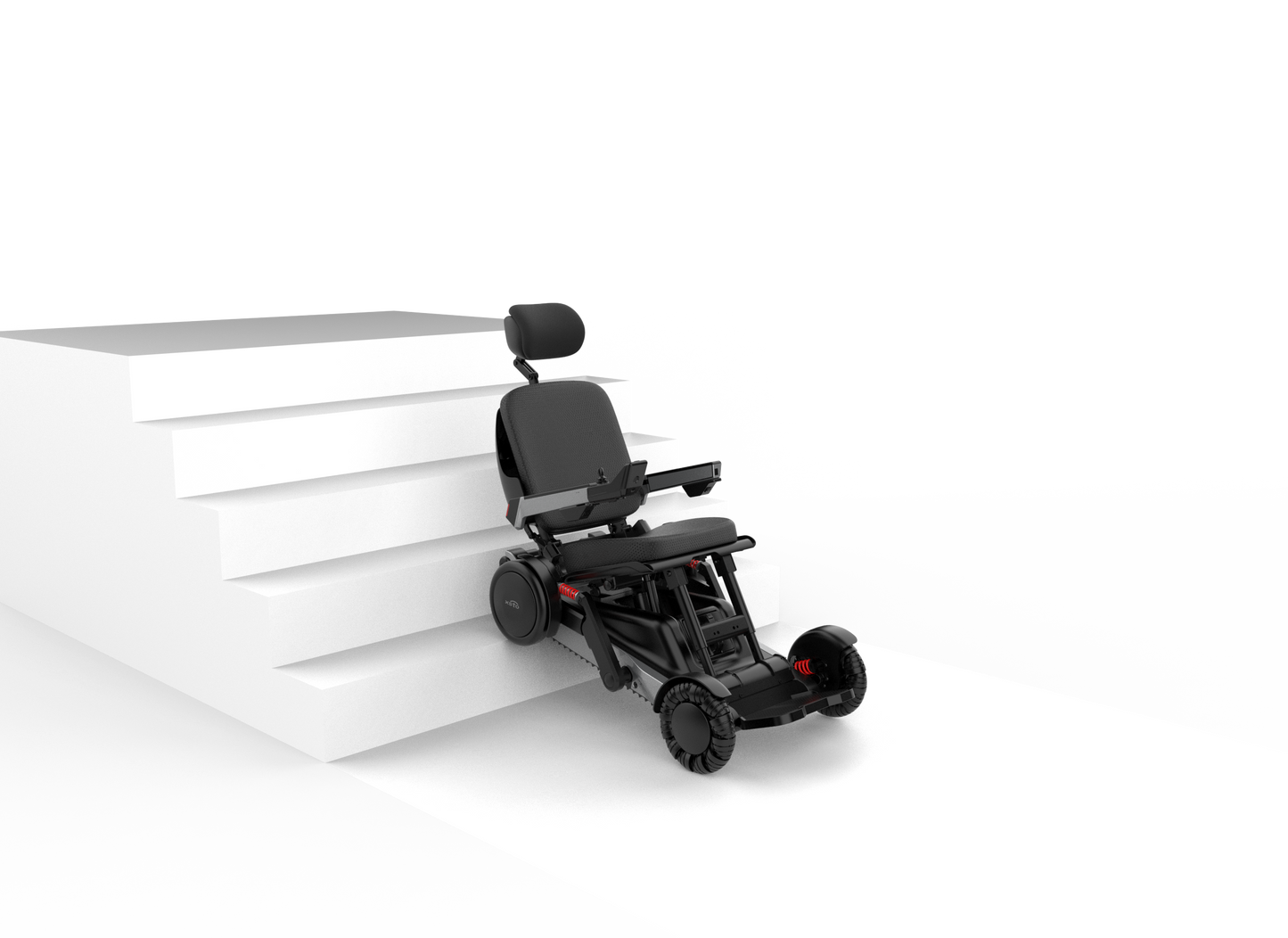

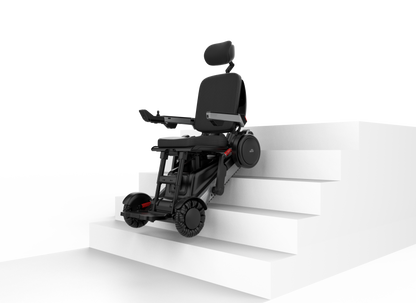

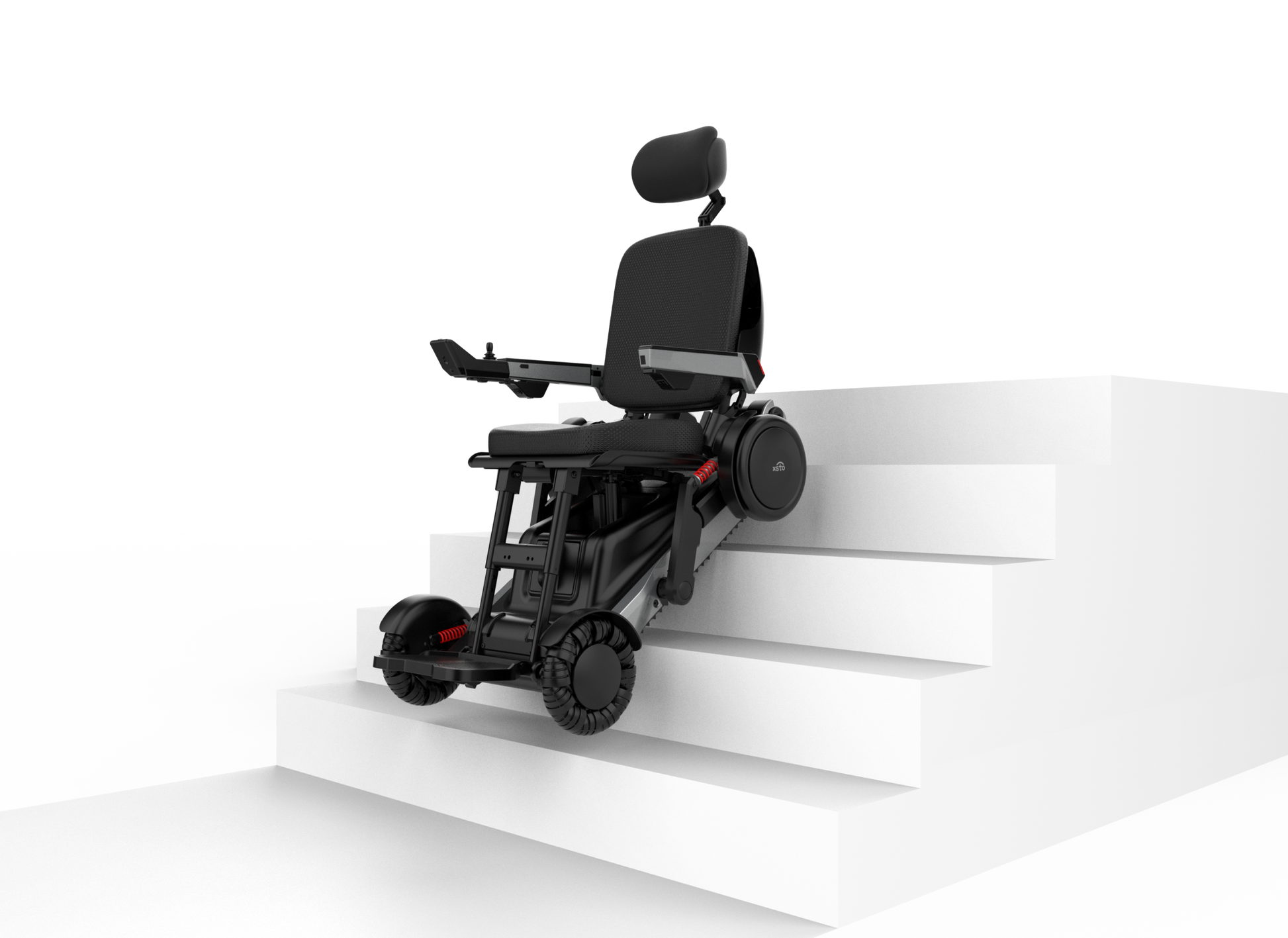

Combing caterpillar and wheeled quadruped mechanisms, this mode can address mobility challenges on stairs, steps, steep slopes and so on.
|
The wheeled quadruped robot chassis is equipped with an independent power system and suspension shock absorption system for the four wheels, which has strong off-road performance and provides comfortable experience.
|
Al Control
Detect obstacles through LIDAR, gyroscopes, etc., to construct the spatial morphology and determine the spatial position. Making use of the unique models and algorithms to control the deformation and movement of the robot, achieving fully automated control during the process of going up and down stairs, crossing slopes, traversing road shoulders and so on, truly realizing intelligence, comfort, and safety.
 |
 |
 |
Intellent Mode Switching |
Intellent Matching of Power Output |
Intelligent Safety Guarantee |
| Automatically switches modes according to the shapes of obstacle and intention of the users to adapt to various terrains, maximizing passability. | Automatically make decisions to match the best power output as needed, including four-wheel power, track power, quadruped joint power, etc. | Automatically identify and actively adjust dangerous or incorrect postures and operations during driving to ensure comfort and safety. |

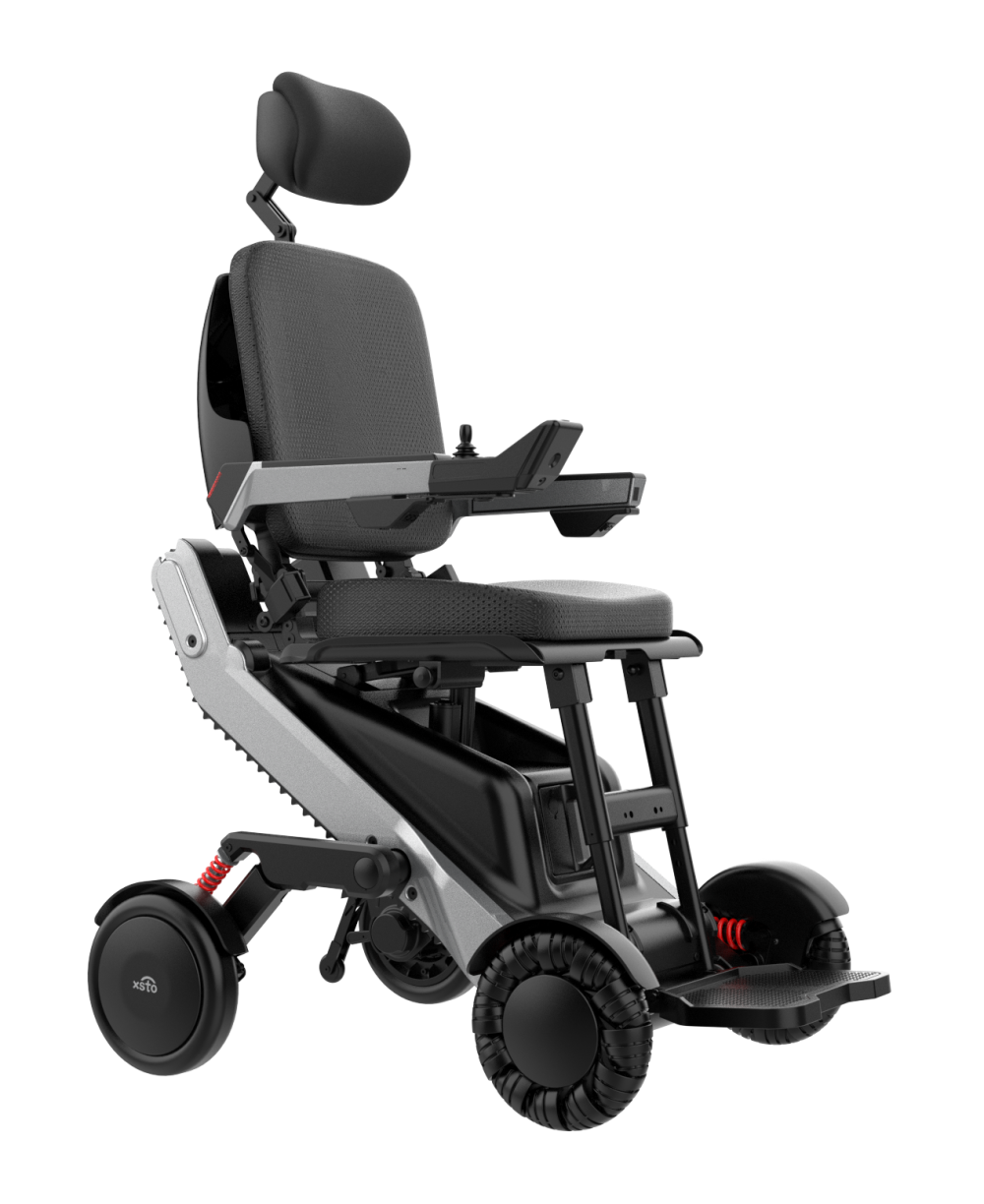

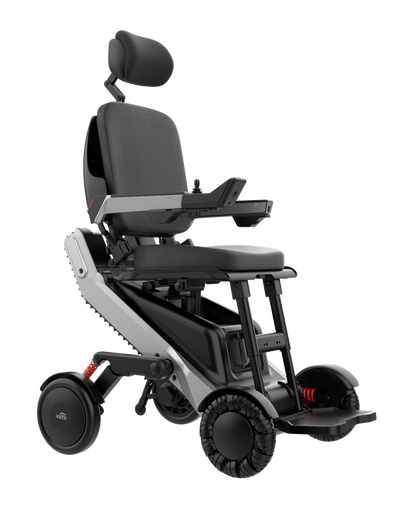

All-terrain Mobility Robot X12
All-terrain 360° Self-Balancing Dynamic Seat
Featuring the industry-first Prow Stabilization System, this seat integrates gyroscopic sensors with a proprietary spatial safety algorithm to achieve automatic balance on all complex terrains.
And the machine can implement 360° omnidirectional steering on slopes, steps, and rugged paths while maintaining stable.
Intelligent Assistive Driving
|
|
|
Obstacle Avoidance Warning |
Reverse Collision Detection and Warning |
Timely Drop-off Risk Warning |
Automotive-grade security standard, laser radar precisely detects the environment. Proactively alerts the user that they are in a hazardous area and gives a voice warning of potential fall or tip-over risks.

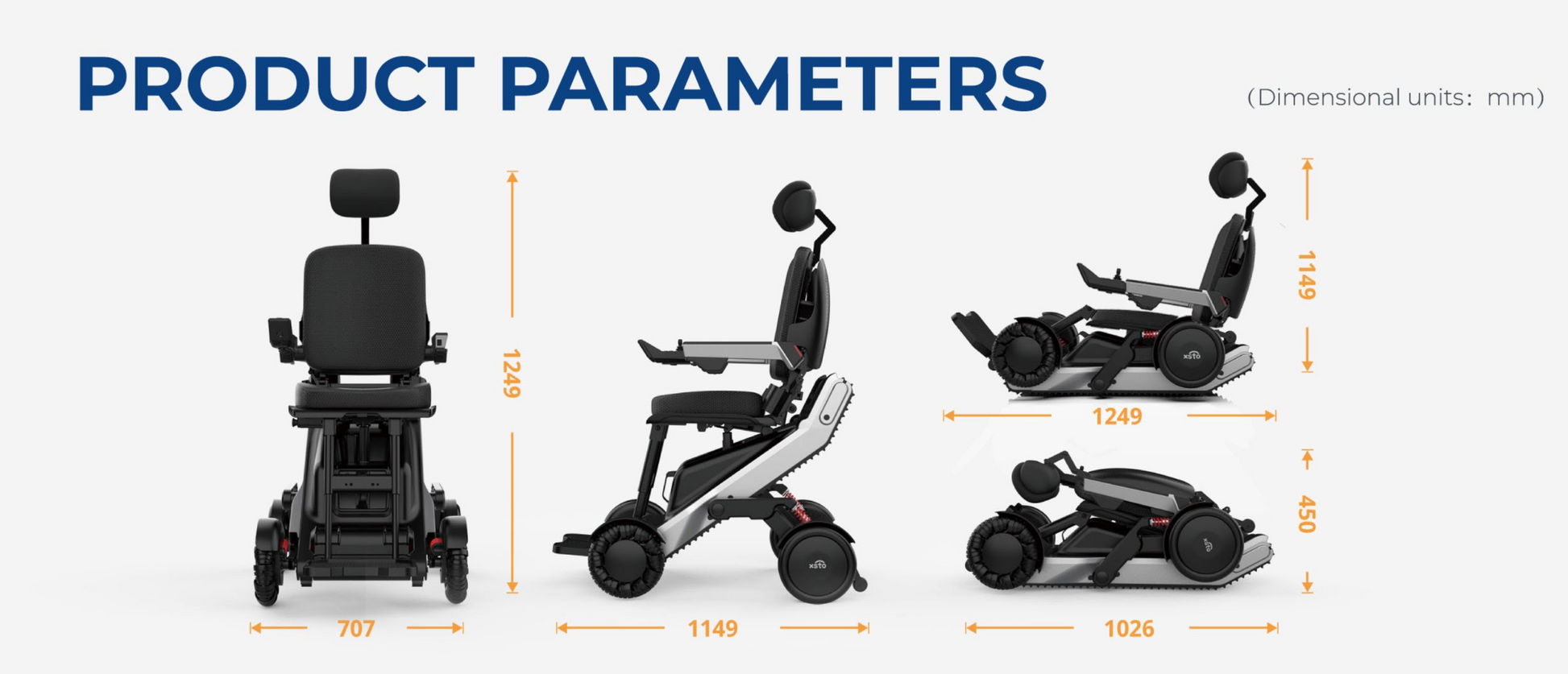

Specification
| Weight | About 100kg | Maximum Driving Speed | 12km/h |
|---|---|---|---|
| Maximum Load | 136kg | Range | 35km |
| Balance Type | 360° Full-time Automatic Balancing (Inclination Range: Forward & Backward 15°, Left & Right 8°, Other Directions 8~15°) | Chassis Type | Wheeled Quadruped Caterpillar Chassis |
| Upstairs Speed | 30 Steps/min | Downstairs Speed | 35 Steps/min |
| Chassis Powertrain Quantity | 10 | Pitch Range | Tilt Forward: 8° Reclining: 43° |
| Total Powertrain Quantity | 14~16 | Battery Capacity | 24V 44.8Ah |
| Sensor Type | LiDAR and Gyroscope | Front Wheel | 10 Inch Mecanum Wheel |
| Assisted Safe Driving Warn | Standard Configuration | Reverse-Parking Radar | Standard Configuration |
| Waterproof Rating | IPX5 | Seat Width | 440~560mm |
| Seat Depth | 370~500mm | Backrest Width | 400/450/500mm |
| Armrest Height | 175-250mm | Backrest Height | 460~600mm |
| Backrest Tilt Angle | 90~135mm | Adapted Stair Dimension | Height <220mm, Inclination <40° |
| Stairs/Landing Dimensions and Angle Specifications | Maximum Stairs Width: 800mm L-shaped Stair Corner 1060x1060mm U-shaped Stair Corner 1060(Depth) *2000(Width)mm Helical Angle<25° |
Operation Mode | 1. Remote Control 2. Joystick 3. APP 4. Automatic Follow 5. Wireless Key |
| Entertainment Feature | Gentle Sway Mode. AI-powered Mode | Locking/Unlocking Method | APP or Wireless Key |
| Lifting Range | Maximum:750mm Minimum:414mm |
Obstacle Height | Backward: 220mm Forward:150mm |
| Minimum Turning Radius | Wheeled Quadruped Mode: 821mm Caterpillar Mode: 590mm |
Uphill Angle | Backward: 40° Forward: 15° (Wheeled Quadruped Mode) |
| Ditch Span Width | Caterpillar Climbing Mode: 550mm Wheeled Quadruped Mode: 180mm |
Movement Mode | 1. Caterpillar Mode 2. Climbing&Obstacle-surmounting Mode: 3. Wheeled Quadruped Mode |
